Webbing Sling

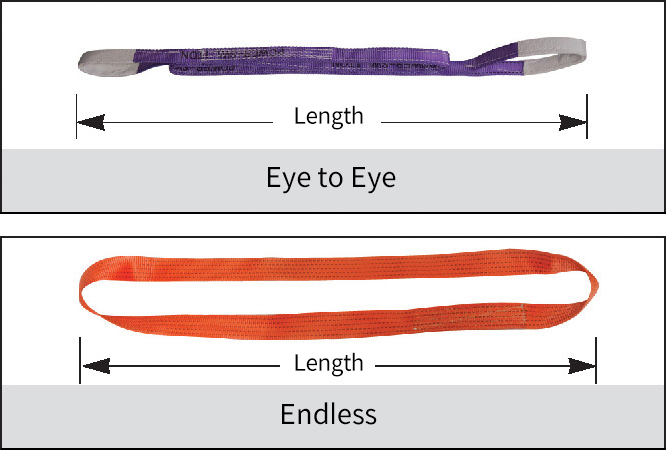

Type of Webbing Sling

Type of Webbing Sling

Technical Specification

  • Webbing sling is designed to aid lifting and transporting heavy products and machines. Webbing sling is light in weight and easy to store. It is being used at various industrial sites that require lifting heavy products. In addition, it is manufactured in various sizes and lifting size standards in accordance with various international standards.
  • Color coded according to DIN-EN 1492-1
  • Capacity stripes: each stripe is equal to 1ton capacity
  • Material : Polyester
  • Safety factor : 6:1 or 7:1
  • According to machine CE & USA Standard(ANSI)

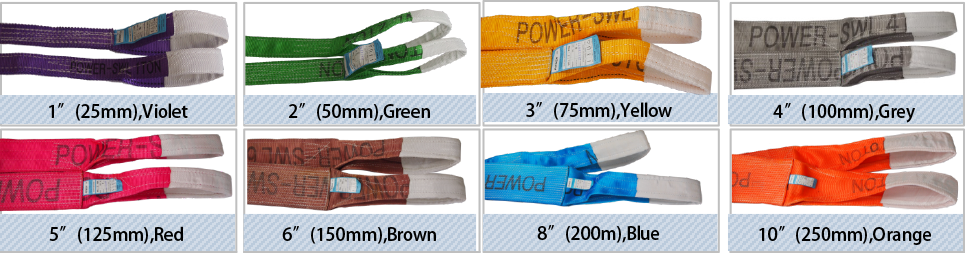

Color of Load Capacity

Color of Load Capacity
Width (mm) Color Eye to Eye type double layers Endless type double layers
S.W.L (kg) Straight Lift Choked Lift Basket Lift Basket Lift 45° Basket Lift  45~60° S.W.L (kg) Straight Lift Choked Lift Basket Lift Basket Lift 45° Basket Lift 45~60°
1 Time 0.8 Time 2 Times 1.4 Times 1Time 1 Time 0.8 Time 2 Times 1.4 Times 1 Time
25 Violet 1,000 1,000 800 2,000 1,400 1,000 2,000 2,000 1,600 4,000 2,400 2,000
50 Green 2,000 2,000 1,600 4,000 2,800 2,000 4,000 4,000 3,200 8,000 5,600 4,000
75 Yellow 3,000 3,000 2,400 6,000 4,200 3,000 36000 36000 4,800 12,000 8,400 36000
100 Grey 4,000 4,000 3,200 8,000 5,600 4,000 8,000 8,000 6,400 16,000 11,200 8,000
125 Red 5,000 5,000 4,000 10,000 7,000 5,000 10,000 10,000 8,000 20,000 14,000 10,000
150 Brown 6,000 6,000 4,800 12,000 8,400 6,000 12,000 12,000 9,600 24,000 16,800 12,000
200 Blue 8,000 8,000 6,400 16,000 11,200 8,000 16,000 16,000 12,800 32,000 22,400 16,000
250 Orange 10,000 10,000 8,000 20,000 14,000 10,000 20,000 20,000 16,000 40,000 28,000 20,000
300 Orange 12,000 12,000 9,600 24,000 16,800 12,000 24,000 24,000 19,200 48,000 33,600 24,000

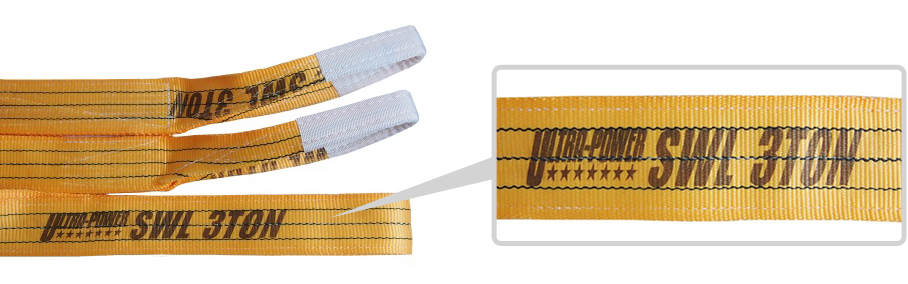

Ultra Power Web Sling(SF 7:1)

Ultra Power Web Sling(SF 7:1)
  • Safety factor 7:1
  • Print SWL on the sling
  • Red Warning threads tell when to change products
  • Can print customers' desired wordings

Automated computer sewing, WEBBING SLING

Type of Power Webbing Sling
  • Straight neat sewing line
  • Regular sewing patterns
  • Maintains regular break strength

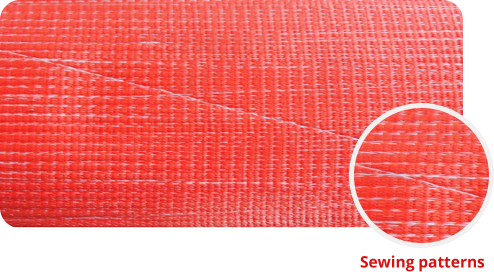

Red Warning Yarn

Red Warning Yarn
  • Red color indicates the end of the life span of web sling.
  • When red threads appear, please change the product into a new one.
  • Eastern puts ‘Red warning yarn’ into all Web Sling products to indicate the end of a product lifespan at a glance.

Advantages of “ULTRA-POWER’ sling

  • Easy attached/connected to industrial equipment easily.
  • “ULTRA-POWER” product is made of special material with durable features ensuring safe use.
  • To prevent misuse products come in color codes as per categories.
  • Products may be customized to suit customer needs in terms of size, length and usage.
  • Resistant against chemical substances and petroleum
  • Can print a company name and logo on the sling
  • Has Red warning yarn in the webbing which tells when to change products.

Aramid Sling

Aramid Sling
  • Made with specially-produced strong aramid yarn on both ends
  • Improve the shortcoming of polyester sling whose both ends prone to damage and that easily wear down.
  • Stronger and resistant against frictions compared to polyester sling
  • Has long life span as it does not break easily compared to polyester sling.
  • Safety factor : 6:1 or 7:1
